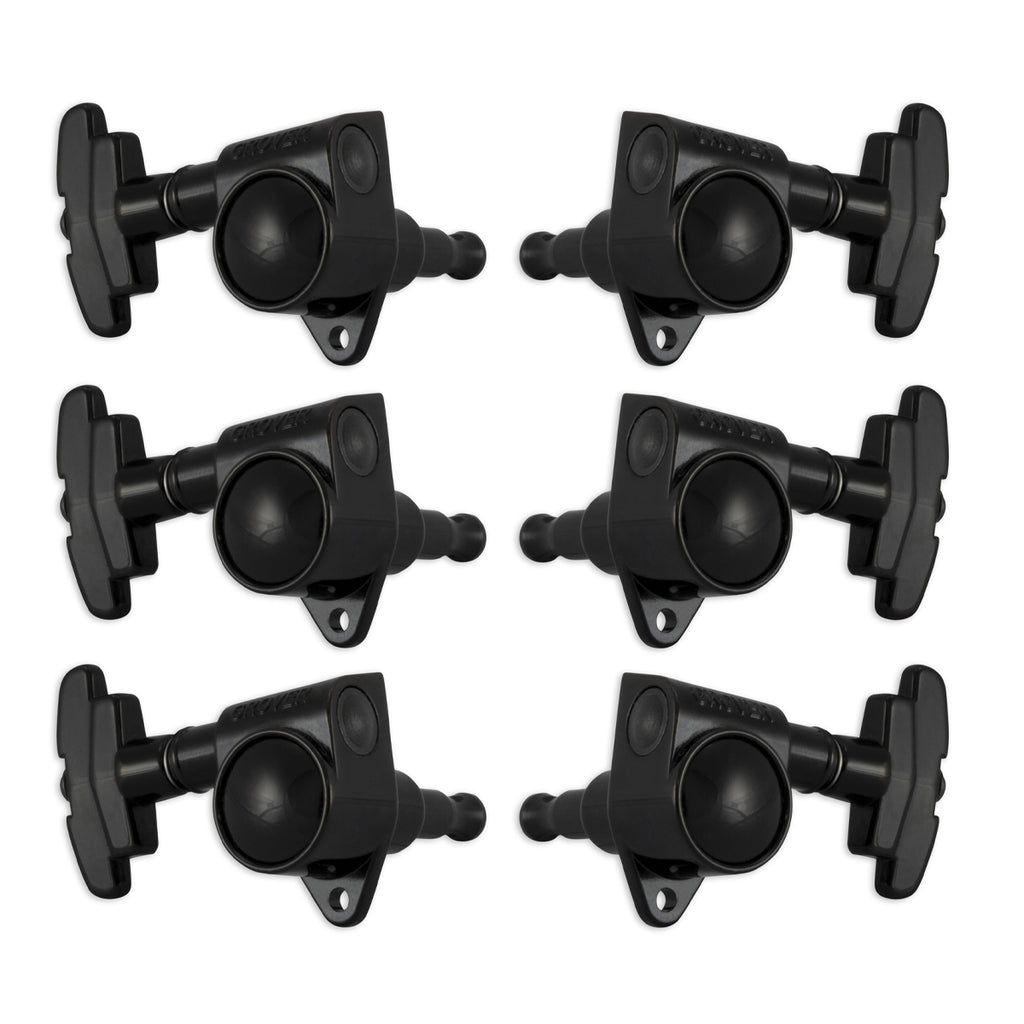

3 treble and 3 bass, set of 6.

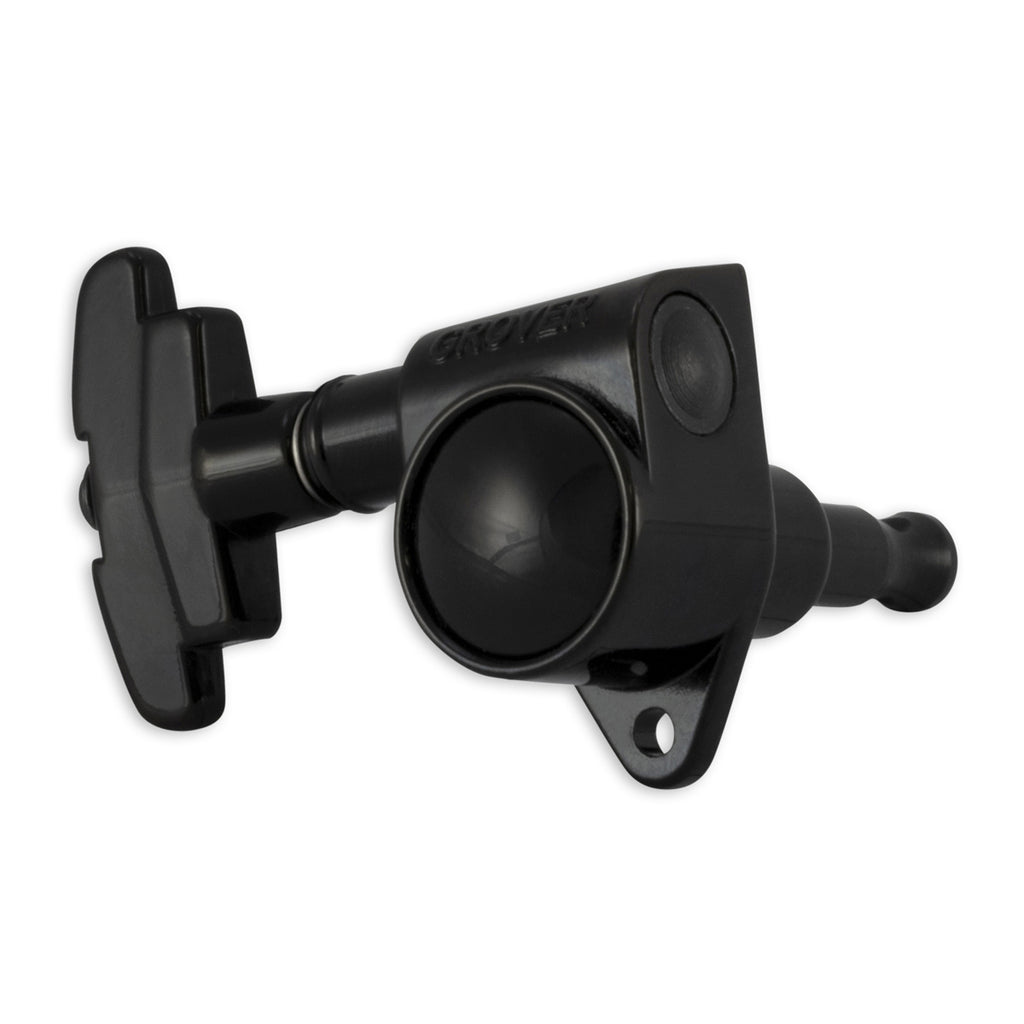

The 109 Series 3-step button gives these machine heads a distinctive look and sets them apart from other Rotomatics®. The housing provides a maximum bearing for worm, gear and string post. Gear ratio is 14:1. Worm and gear are precision-cut for perfect meshing. eliminating backlash and slippage. Countersunk tension screw permits player to regulate turning tension to any degree. Enclosed gear box with special lubricant for a lifetime of trouble-free service.
Sealed-in, lubricated gears
14:1 gear ratio
25/64” post hole
Post length to hole: 23mm
Overall post length: 28.2mm
Weight per pc/per set: 1.6oz/9.6oz
Max. string gauge: .074”
Hardware included (bushings, washers, screws)
Drop-in replacement for:
• 102-18 Series
• 102V Series
• 103 Series
• 106 Series
• 109-18 Series
• 135 Series (Top mounting hole will be visible)
• 136 Series (Top mounting hole will be visible)
• 502 Series
• 509 Series
For detailed specifications and/or fitting guides please locate this item on the Grover website where they offer more information.
About Grover
Innovation and excellence have continued with the development throughout the mid-20th century of the timeless Grover 102 and 205 Rotomatic tuner, with kidney bean or keystone buttons, the 135 Vintage, the iconic 105C Imperials, and the elegant Roto-grip locking tuners. Covering the entire gamut of fretted musical instruments, Grover offers an almost limitless selection of tuners, for guitar, bass and banjo, plus bridges and capos.
